Kicker And Catcher Game Parts List
Not all parts shown are in stock and only a few are included in the shopping cart system.
To order, send an e-mail including the part number and quantity needed and we will respond with the stock status.
Some parts ship at a higher rate. Shipping costs will be quoted at the same time as availability.
| Part No. | Description | Price | ||
| CC-598 | Instruction Card, 3 Balls/One Cent | 20.00 | Click for Pic | |
| CC-599 | Instruction Card, 5 Balls/One Cent | 20.00 | Click for Pic | |
| CC-600 | Instruction Card, 3 Balls/Five Cents | 20.00 | Click for Pic | |
| CC-601 | Instruction Card, 5 Balls/Five Cents | 20.00 | Click for Pic | |
| CC-603A | Your Score Paper | 4.00 | Click for Pic | |
| CC-610 | Score Paper | 8.00 | Click for Pic | |

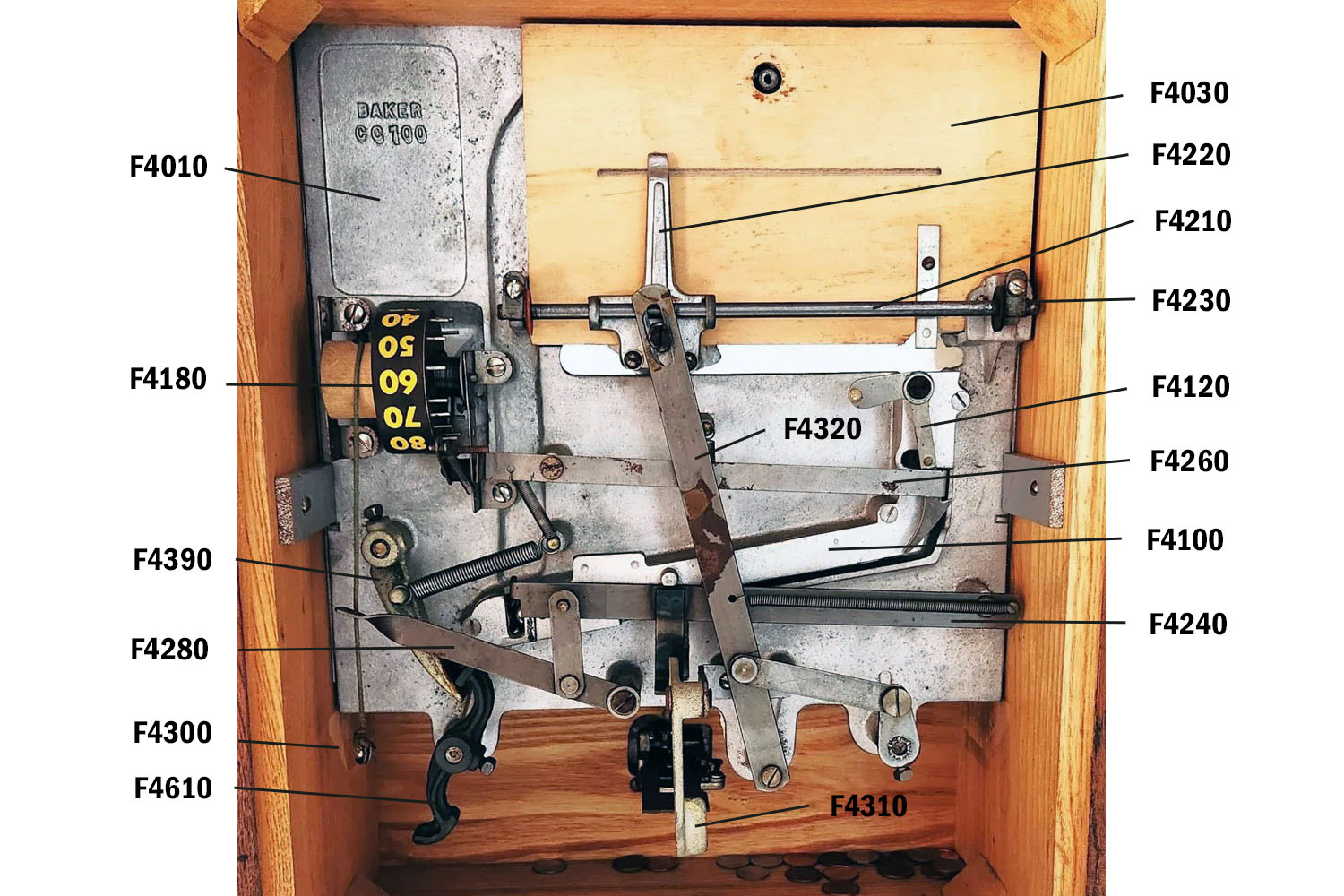

| F4010-U | Main Casting (Used) | 65.00 | Click for Pic | |
| F4020 | Brass Playfield Pin (10 Pack) | 4.00 | ||
| F4030-U | Pin Board Assembly | 45.00 | Click for Pic | |
| F4040 | Washer | .20 | ||
| F4050 | Long Screw | .20 | ||
| F4060 | Flat Head Wood Screw | .20 | ||
| F4070 | Round Head Wood Screw | .20 | ||
| F4080-U | Ball Stop | 4.00 | ||
| F4090 | Short Round Head Wood Screw | .20 | ||
| F4100-U | Rear Runway Cover Casting w/Hdwe (Used) | 12.00 | Click for Pic | |
| F4110 | Middle Screw | .20 | ||
| F4120-U | Counter Lock Arm Assembly w/Hdwe (Used) | 12.00 | Click for Pic | |
| F4130 | Thick Flat Washer | .20 | ||

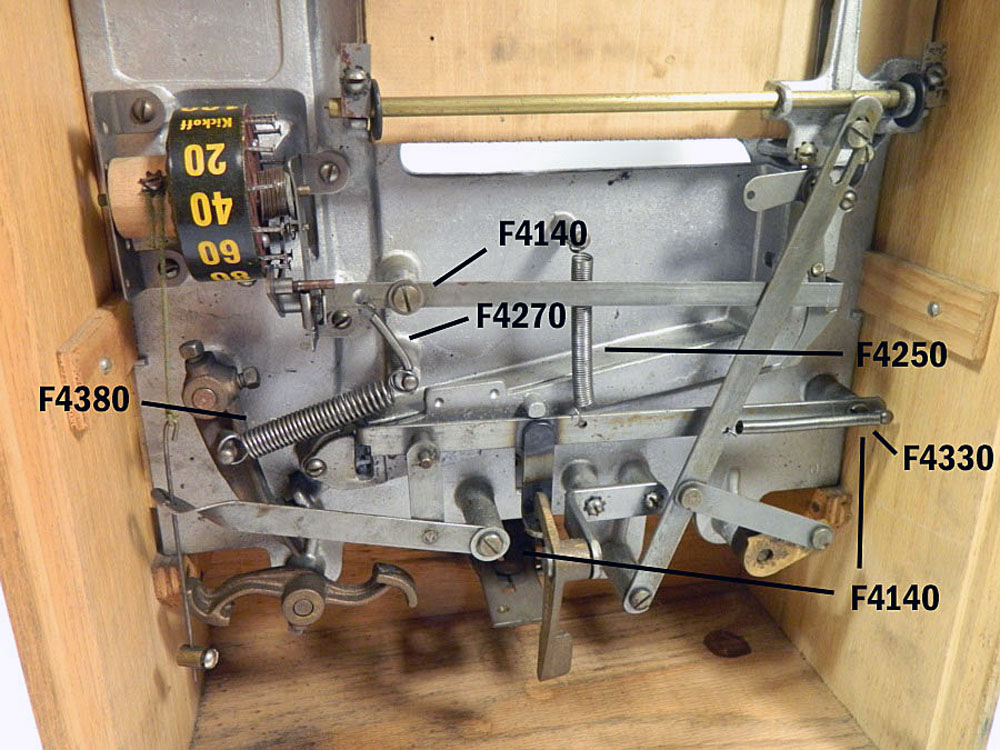

| F4140 | Shoulder Bolt | 2.00 | ||
| F4150-U | Register Wheel Bracket Assy (Used) | 8.00 | ||
| F4160 | Lock Washer | .20 | ||
| F4170 | Short Screw | .20 | ||
| F4180-U | Register Wheel Assy (Used) | 65.00 | Click for Pic | |
| F4190-U | Register Wheel Bracket (Used) | 8.00 | ||
| F4200 | Washer | .20 | ||
| F4210-U | Brass Rod (Used) | 8.00 | Click for Pic | |
| F4220-U | Ball Cup Guide Casting (Used) | 12.00 | Click for Pic | |
| F4230-U | Rod Clamp (Used) | 1.00 | Click for Pic | |
| F4240-U | Ball Release Assembly w/Hdwe (Used) | 18.00 | Click for Pic | |
| F4250 | Middle Spring | 6.00 | ||
| F4260-U | Counter Arm Score Rod w/Hdwe (Used) | 12.00 | Click for Pic | |
| F4270 | Short Spring | 6.00 | ||
| F4280-U | Score Reset Assy w/Hdwe (Used) | 12.00 | Click for Pic | |
| F4290 | Thin Washer | .20 | ||
| F4300-U | Dial Adjustment Assy (Used) | 8.00 | Click for Pic | |
| F4310-U | Trip Lever Casting Assy w/Hdwe (Used) | 30.00 | Click for Pic | |
| F4320-U | Control Arm Assy w/Hdwe (Used) | 18.00 | Click for Pic | |
| F4330 | Long Spring | 6.00 | ||
| F4340-U | Kicker Leg Casting Assy (Used) | 35.00 | ||
| F4340KC-U | Kicker Leg Casting Painted (Used) | 45.00 | ||
| F4350 | Thin Washer | .20 | ||
| F4360 | Thick Washer | 1.00 | ||
| F4370-U | Kicker Leg Ball Stop Wire (Used) | 4.00 | ||
| F4380-U | Main Kicker Spring (Used) | 12.00 | ||
| F4380F-U | Formed Main Kicker Spring (Used) | 12.00 | ||
| F4390-U | Kicker Cam Casting Assy w/Hdwe (Used) | 30.00 | Click for Pic | |
| F4400BT-U | Ball Cup Casting (Big Top) (Used) | 30.00 | ||
| F4400KC-U | Ball Cup Casting (Kicker Catcher) (Used) | 30.00 | ||
| F4400LL-U | Ball Cup Casting (Little League) (Used) | 30.00 | ||
| F4400LS-U | Ball Cup Casting (Long Shot) (Used) | 30.00 | ||
| F4400PG-U | Ball Cup Casting (Pot of Gold) (Used) | 30.00 | ||
| F4410 | Long Bolt | .20 | ||
| F4420 | Spacer | 1.00 | ||
| F4430-U | Runway Casting (Used) | 25.00 | ||
| F4440 | Plastic Glass Protector | 4.00 | ||
| F4450 | Aluminum Glass Protector (Little League) | 8.00 | ||
| F4460 | Little League Batter Assy | 25.00 | ||
| F4520-U | Handle Bearing Bar w/Hdwe (Used) | 8.00 | ||
| F4540BT | Front Glass (Big Top) | 95.00 | Click for Pic | |

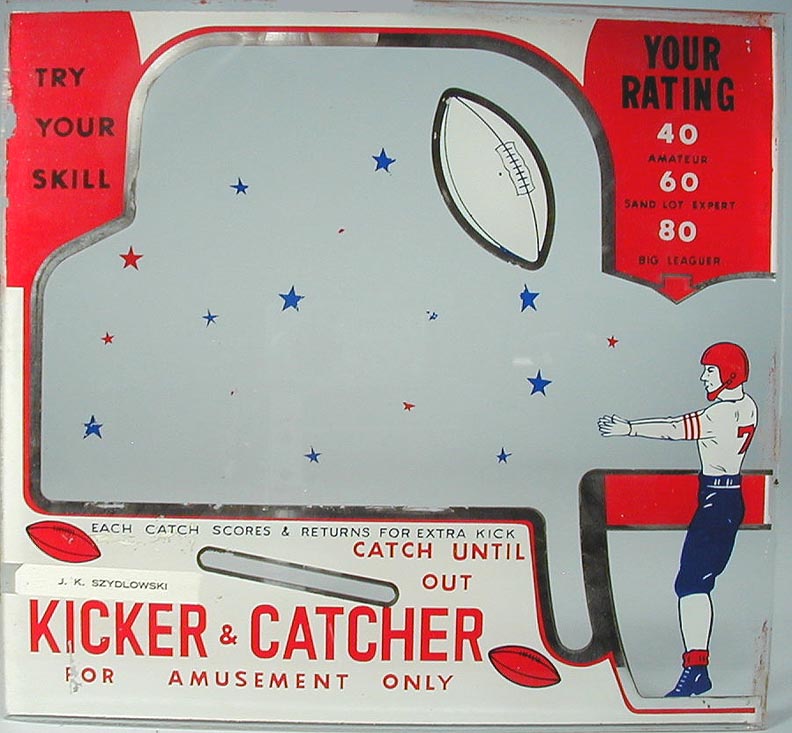

| F4540KC | Front Glass (Kicker Catcher) | 75.00 | Click for Pic | |

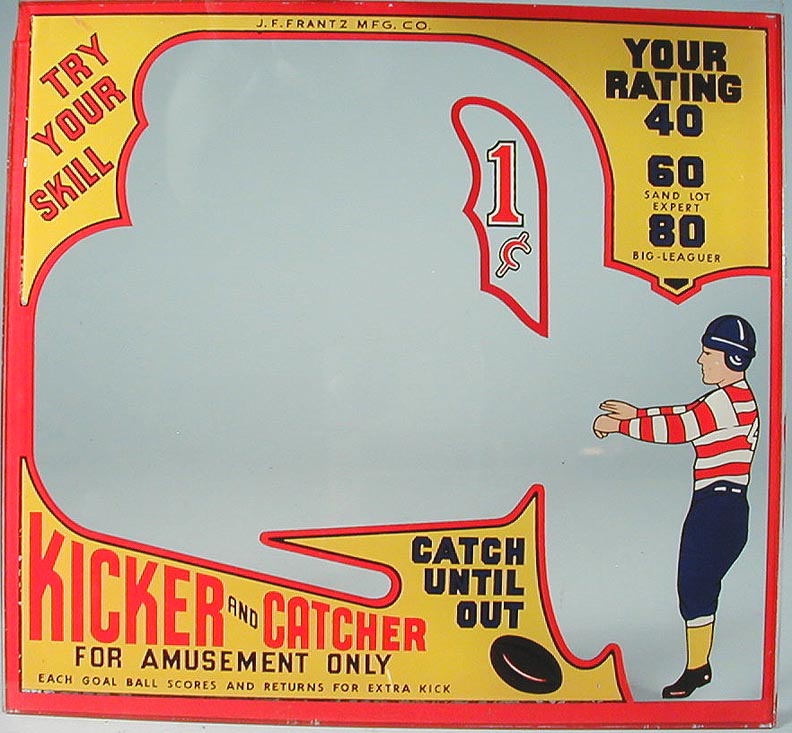

| F4540KCO | Front Glass (Kicker Catcher, Early Style) | 95.00 | Click for Pic | |

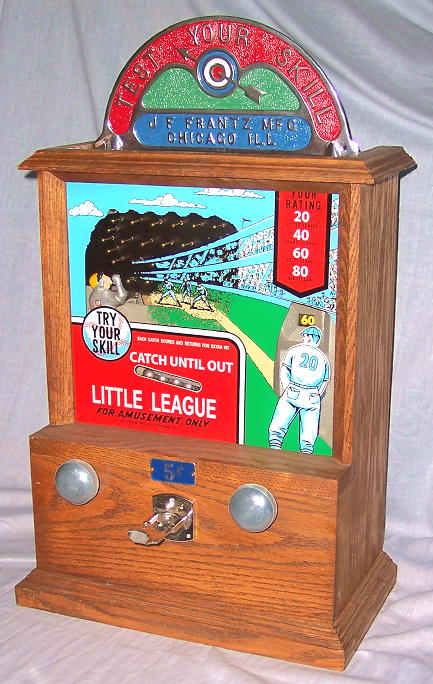

| F4540LL | Front Glass (Little League) | 95.00 | Click for Pic | |

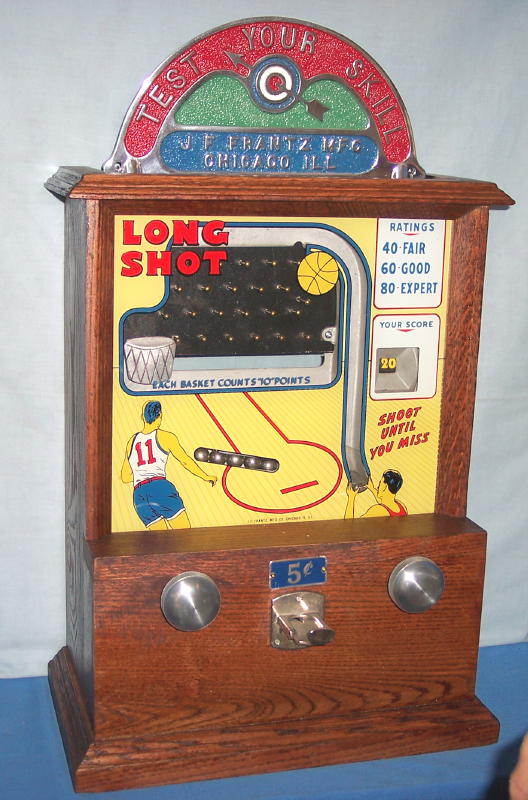

| F4540LS | Front Glass (Long Shot) | 95.00 | Click for Pic | |

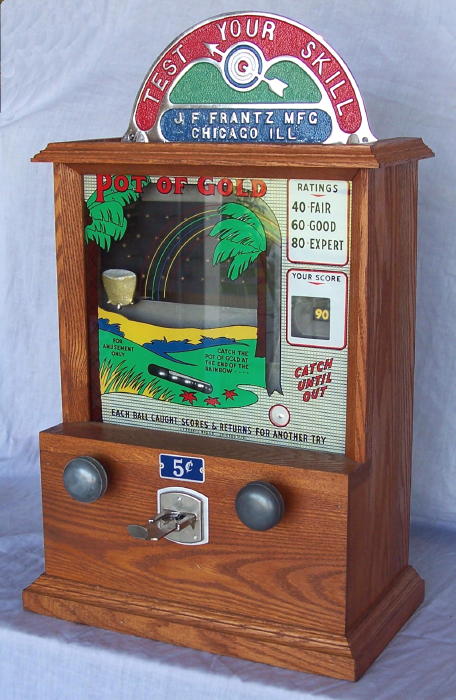

| F4540PG | Front Glass (Pot of Gold) | 95.00 | Click for Pic | |
| F4550 | Long Wood Strip w/Hdwe | 1.00 | ||
| F4570 | Short Wood Strip w/Hdwe | 1.00 | ||
| F4590 | Handle Assy | 75.00 | ||
| F4600 | Handle Spacer | 1.00 | ||
| F4610-U | Operating Cam Casting w/Hdwe (Used) | 25.00 | Click for Pic | |
| F4650 | Steel Ball | 1.50 | ||

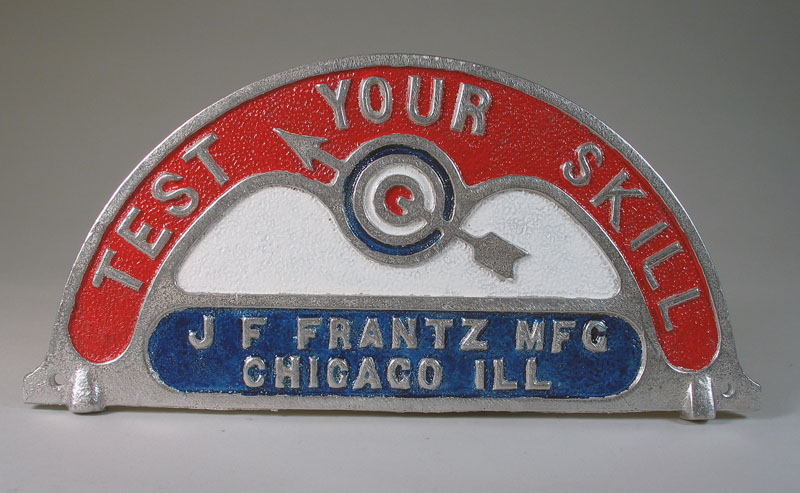

| F4660 | Marquee (Test Your Skill) | 95.00 | Click for Pic | |
| F4660B | Marquee (Little League) | 95.00 | Click for Pic | |
| F9600D-U | Coin Chute - 10c (Used) | 95.00 | ||
| F9600N-U | Coin Chute - 5c (Used) | 95.00 | ||
| F9600Q-U | Coin Chute - 25c (Used) | 95.00 | ||
| MT001 | Metal Coin Tag, 1c | 10.00 | Click for Pic | |
| MT005 | Metal Coin Tag, 5c | 10.00 | Click for Pic | |
| MT010 | Metal Coin Tag, 10c | 10.00 | Click for Pic | |
| MT025 | Metal Coin Tag, 25c | 10.00 | Click for Pic |
