A.B.T. Gun Parts List, Page 1
Not all parts shown are in stock and none are included in the shopping cart system.
To order, send an e-mail including the part number and quantity needed and we will respond with the stock status.
Some parts ship at a higher rate. Shipping costs will be quoted at the same time as availability.
| Part No. | Description | Price | ||
| 1-A | Gun Frame Casting Assembly | 165.00 | Click for Pic | |
| 1-A-U | Gun Frame Casting Assembly (Used) | 125.00 | Click for Pic | |
| 1-A-N | Gun Frame Casting, Newer Games | 165.00 | ||
| 1-A-N-U | Gun Frame Cstng, Newer Games (Used) | 125.00 | ||
| 10 | Firing Pin Sleeve | 20.00 | Click for Pic | |
| 10-U | Firing Pin Sleeve (Used) | 12.00 | Click for Pic | |
| 10-A | Firing Pin Sleeve Assembly | 21.00 | Click for Pic | |
| 10-A-U | Firing Pin Sleeve Assembly (Used) | 13.00 | Click for Pic | |
| 116 | Plate Inlay (Left Side) | 10.00 | Click for Pic | |
| 116-U | Plate Inlay (Left Side) (Used) | 6.00 | Click for Pic | |
| 1514 | Timing Rack Hook Shoulder Rivet | 4.00 | Click for Pic | |
| 1515 | Timing Rack Spring Stud | 4.00 | Click for Pic | |
| 1535 | Coin Release Lever Shoulder Rivet | 2.00 | Click for Pic | |
| 1560 | Taper Pin for Breech | 1.00 | Click for Pic | |
| 1561 | Firing Pin | 20.00 | Click for Pic | |
| 1561-U | Firing Pin (Used) | 12.00 | Click for Pic | |
| 1593 | Breech Plug | 12.00 | Click for Pic | |
| 1593-U | Breech Plug (Used) | 6.00 | Click for Pic | |
| 2-A | Gun Plate (Right Side) | 30.00 | Click for Pic | |
| 2-A-U | Gun Plate (Right Side) (Used) | 20.00 | Click for Pic | |
| 2-B-1-U | Gun Plate (Right Side), 1c (Used) | 30.00 | ||
| 2-B-5-U | Gun Plate (Right Side), 5c (Used) | 25.00 | ||
| 2511 | Timing Rack Screw | 5.00 | Click for Pic | |
| 2511-U | Timing Rack Screw (Used) | 3.00 | Click for Pic | |
| 2515 | Trigger Lever Screw | 5.00 | Click for Pic | |
| 2515-U | Trigger Lever Screw (Used) | 3.00 | Click for Pic | |
| 2516 | Loading Lever Screw | 5.00 | Click for Pic | |
| 2516-U | Loading Lever Screw (Used) | 3.00 | Click for Pic | |
| 2517 | Firing Lever Screw | 5.00 | Click for Pic | |
| 2517-U | Firing Lever Screw (Used) | 3.00 | Click for Pic | |
| 2518 | 8-32 x 3/16" Headless Set Screw | 1.00 | Click for Pic | |
| 2518-1 | 8-32 x 1/4" Headless Set Screw | .50 | Click for Pic | |
| 2518-U | 8-32 x 1/4" Slotted Set Screw (Used) | 1.00 | Click for Pic | |
| 2558 | Screw 6-32 x 1/2" B.H.I.M.S.N.P. | .20 | Click for Pic | |
| 2558-1 | Screw 6-32 x 1/4" B.H.I.M.S.N.P. | .20 | ||
| 2600 | Mac-It Pistol Lock Screw | 8.00 | Click for Pic | |
| 2600-U | Mac-It Pistol Lock Screw (Used) | 5.00 | Click for Pic | |
| 2610 | Screw 6-32 x 3/16" R.H.I.M.S.N.P. | .20 | Click for Pic | |
| 2614 | Screw 6-32 x 5/16" R.H.I.M.S.N.P. | .20 | Click for Pic | |
| 2615 | Screw 6-32 x 5/16" F.H.I.M.S.Z.P. | .20 | Click for Pic | |
| 2615-U | Screw 6-32 x 5/16" F.H.I.M.S.N.P. | .25 | Click for Pic | |
| 2616 | Screw 6-32 x 3/16" F.H.I.M.S.N.P. | .20 | Click for Pic | |
| 2618 | Screw 6-32 x 1/2" F.H.I.M.S.Z.P. | .20 | Click for Pic | |
| 2618-U | Screw 6-32 x 1/2" F.H.I.M.S.N.P. | .25 | Click for Pic | |
| 2627 | Firing Lever Spring Screw | .20 | Click for Pic | |
| 2633 | Coin Plate Screw | .20 | Click for Pic | |
| 2688 | Screw 6-32 x 5/16" R.H.I.M.S.N.P. | .20 | Click for Pic | |
| 2831 | Gun Plate Inlay Rivet | 2.00 | Click for Pic | |
| 2847 | Gun Operating Lever Rivet | 1.00 | Click for Pic | |
| 3-A | Gun Plate (Left Side) | 30.00 | Click for Pic | |
| 3-A-U | Gun Plate (Left Side) (Used) | 20.00 | Click for Pic | |
| 3003 | Firing Lever Dog Spring | 6.00 | Click for Pic | |
| 3004 | Timing Rack Spring | 6.00 | Click for Pic | |
| 3005 | Trigger Lever Spring | 6.00 | Click for Pic | |
| 3006 | Coin Slide Safety Dog Spring | 6.00 | Click for Pic | |
| 3007 | Timing Rack Dog Spring | 6.00 | Click for Pic | |
| 3008 | Loading Lever Spring | 6.00 | Click for Pic | |
| 3101 | Firing Lever Open Coil Spring | 6.00 | Click for Pic | |
| 3102 | Firing Pin Spring | 15.00 | Click for Pic | |

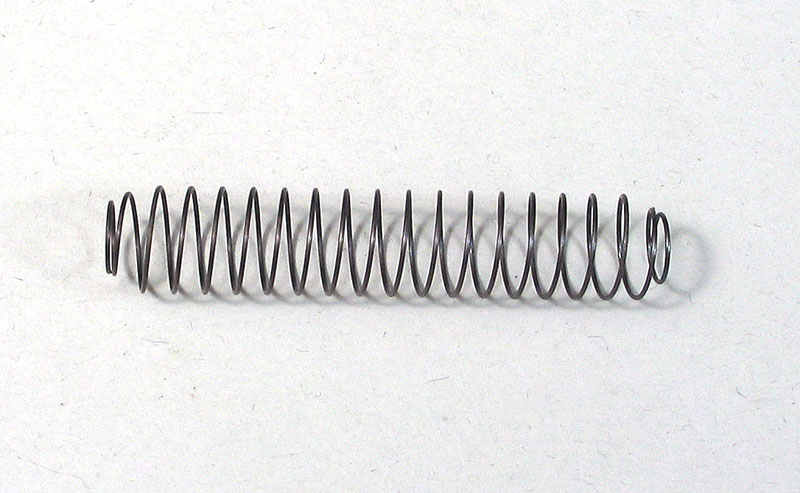

| 3102-1 | Firing Pin Spring (Billiard Practice) | 15.00 | Click for Pic | |
| 3201 | Gun Operating Spring | 6.00 | Click for Pic | |
| 3251 | Firing Lever Formed Spring | 15.00 | Click for Pic | |
| 3252 | Gun Slide Plate Spring | 6.00 | Click for Pic | |
| 442 | Plate Inlay (Right Side) | 10.00 | Click for Pic | |
| 442-U | Plate Inlay (Right Side) (Used) | 6.00 | Click for Pic | |
| 4527 | Wrench for Pistol Locking Screw | 2.00 | Click for Pic | |
| 461-U | 1c Coin Intake (Used) | 10.00 | Click for Pic | |
| 462-U | 5c Coin Intake (Used) | 10.00 | Click for Pic | |
| 5-U | Right Plate Piece (Used) | 10.00 | Click for Pic | |
| 506-U | Firing Lever Safety Dog (Used) | 1.00 | Click for Pic | |
| 513-U | Timing Rack, 10 shot (Used) | 5.00 | Click for Pic | |
| 513-1-U | Timing Rack, 5 shot (Used) | 5.00 | Click for Pic | |
| 515-U | Timing Hook (Used) | 5.00 | Click for Pic | |
| 517 | Timing Rack Cover | 5.00 | Click for Pic | |
| 517-U | Timing Rack Cover (Used) | 3.00 | Click for Pic | |
| 519 | Loading Lever | 15.00 | Click for Pic | |
| 519-U | Loading Lever (Used) | 10.00 | Click for Pic | |
| 520-B-U | Pistol Assy w/Coin Intake (1c or 5c), Refurbished | 350.00 | ||
| 520-C-U | Pistol Assy w/Push Lever (1c or 5c), Refurbished | 400.00 | ||
| 530 | Firing Lever Rack | 5.00 | Click for Pic | |
| 530-U | Firing Lever Rack (Used) | 3.00 | Click for Pic | |
| 533 | Trigger Retainer | 3.00 | Click for Pic | |
| 533-U | Trigger Retainer (Used) | 1.00 | Click for Pic | |
| 540 | Lock Plate Washer | 3.00 | Click for Pic | |
| 540-U | Lock Plate Washer (Used) | 2.00 | Click for Pic | |
| 725 | Timing Stop (10 Shot) | 2.00 | Click for Pic | |
| 725-U | Timing Stop (10 Shot) (Used) | 1.00 | Click for Pic | |
| 9-A-U | Trigger Assembly (10 Shot) (Used) | 30.00 | Click for Pic | |
| 9-A-1-U | Trigger Assembly (5 Shot) (Used) | 35.00 | Click for Pic | |
| B-1452 | Timing Stop (5 Shot) | 5.00 | Click for Pic | |
| B-811-A-1 | Gun Coin Slide w/Push Lever (Repro) | 25.00 | Click for Pic | |
| B-811-A-1-U | Gun Coin Slide w/Push Lever (Used) | 35.00 | Click for Pic | |
| B-811-A | Gun Coin Slide | 15.00 | Click for Pic | |
| B-811-A-U | Gun Coin Slide (Used) | 10.00 | Click for Pic |
